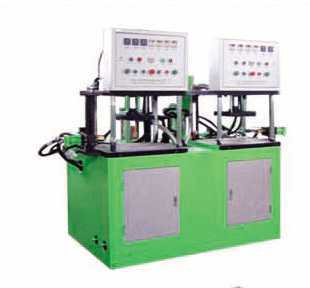

Double site hydraulic wax injection machine - investment casting machine
|
| |
  |
| Name: |
Double site hydraulic wax injection machine - investment casting machine
|
Specification: |
MMY6.3-2-8 |
MMY11-2-10 |
Power, V : |
380V AC |
380V AC |
Installed Power, kw: |
8.5kw |
14.5 |
Mold Clamp Force, T: |
8 |
10 |
System Pressure, Mpa: |
7.0 |
14.0 |
Wax Injection Pressure, Mpa: |
6.3 |
2-11 |
Wax Injection TEMP. |
30-90 |
30-90 |
Wax Cylinder Volume, L: |
80 |
80 |
Platen Speed close, mm/S: |
34 |
42 |
Injection The Wax Speed, L /S : |
0-0.3 |
0-0.3 |
Injection The Wax Time, S: |
0-99 |
0-99 |
Quantity Of Wax Injecting /one time, L: |
0- 2.4 |
0- 2.4 |
Work Area Size (L* W* H), mm: |
500x400x300 |
520x400x360 |
Contour Size (L* W* H), mm: |
1750x1100x1800 |
2350x1270x1800 |
Weight, kg: |
1500kg |
1700kg |
Description: This machine is applied in investment casting industry to shape many kinds of medium and small scale wax patterns of complicated shape, high quality and great precision; Model MMY11-2-10 adopts PLC electric control and has strong adaptability to enviorenments and low malfunction ratio; it can well coordinate different wax injection pressures to improve the surface quality of wax pattern to the highest extend. |
|
