Drying mould shell line - lost wax casting machine
|
| |
 |
| Name: |
Drying mould shell line - lost wax casting machine |
Specification: |
MMGX-10 |
Power, V: |
380VAC |
Installed Power, kw: |
2.2 |
ChainSpeed, mm/min: |
700 |
Work Area Size (L* W* H ), mm: |
1700x400x550 |
Contour Size (L* W *H ), mm: |
10000x2000x3000 |
Weight, kg: |
4500 |
PATENT NO. : |
200720158455.1 |

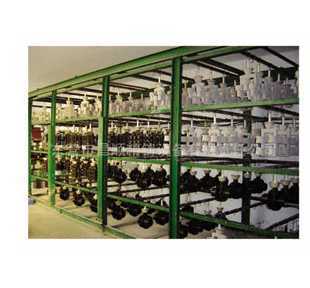

Description: Shell making and drying line of delivering with cross bars lifted by multi-chains is mainly applied in shell hanging, drying and transportation in investment casting industry. It dries shell more evenly than ordinary shell stand. The main body if the drying line is welded with 14# channel steel, with simple structure and liable strenth, convinient for maintenance. The chain size conforms to national standard. It is designed by considering the application and maintenance process adequately, so all the chains is exposed to view for easy check and repair. Catenary chain shell drying line has been the essential eqipment in investment casting industry. We also design and manufecture shell making and drying line of different production length and hanging room according to customers requirements. Frequency variable and energy saving devices for drying line is also available. |
|
